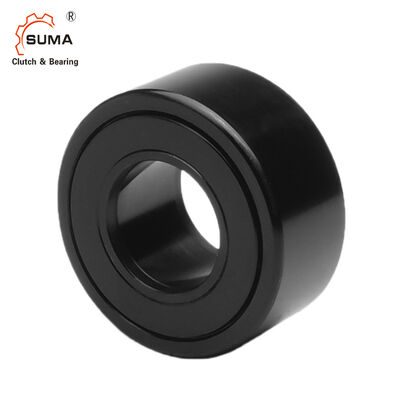

Name: CYR2S CYR-2 S Needle Roller Bearing Cam Follower Bearings
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: YCR
Price: 2.50 USD
Availability: InStock

Inicio Productos Tipo seguidor del perno prisionero de leva

CYR2S CYR-2 S Needle Roller Bearing Cam Follower Bearings

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	SUMA
Certificación:	ISO SGS
Número de modelo:	YCR

Pago y Envío Términos:

Cantidad de orden mínima:	10 Uds.
Precio:	USD2.5-USD3.2 PER PIECE
Detalles de empaquetado:	Caja de cartón / caja de madera
Tiempo de entrega:	2-5 días
Condiciones de pago:	L/C, D/A, D/P, T/T, Western Union, Paypal
Capacidad de la fuente:	100000 pcs por mes

Contacto

Descripción detallada del producto

Nombre del producto:	Rodamientos seguidores de leva CYR	Material:	Acero de rodamiento GCR15
Superficie externa de la raza:	Cilíndrico	Paquete:	Cada uno en caja de la bolsa de plástico + del cartón
Garantía:	6 meses	Puerto:	Shangai/Ningbo
OEM:	Aceptar	Tiempo de entrega:	3-5 días
Resaltar:	stud type cam follower bearing , CYR2S needle roller bearing , cam follower bearing with stud

CYR2S CYR-2 S Needle Roller Bearing Cam Follower Bearings

Features

Track Roller is a bearing unit composed of machined thick-wall outer ring, needle rollers or cylindrical roller sets, or cage guidance or full complement needle roller, inner ring or bolt and seal. Featuring multiple compact structure, high rotating accuracy, large varieties, broad adaptability and easy installation, it can bear high radial load and certain shock load and is widely used in machine tool, metallurgical, textile and printing machinery, processing lines and etc.

Dimensions and Capacities

CYR2S CYR-2 S Needle Roller Bearing Cam Follower Bearings 0

No seals Ref No.	Sealed Ref No.	Sealed Ref No.	OD (RD) Inch	Width (W) Inch	ID (B) Inch	Width over end plates (W1) Inch	Dia. Of end plate (E) Inch
CYR-3/4	CYR-3/4-S	CCYR-3/4-S	0.75	0.5	0.25	0.5625	39/64
CYR-7/8	CYR-7/8-S	CCYR-7/8-S	0.875	0.5	0.25	0.5625	39/64
CYR-1	CYR-1-S	CCYR-1-S	1	0.625	0.3125	0.6875	25/32
CYR-1 1/8	CYR-1 1/8-S	CCYR-1 1/8-S	1.125	0.625	0.3125	0.6875	25/32
CYR-1 1/4	CYR-1 1/4-S	CCYR-1 1/4-S	1.25	0.75	0.375	0.8125	63/64
CYR-1 3/8	CYR-1 3/8-S	CCYR-1 3/8-S	1.375	0.75	0.375	0.8125	63/64
CYR-1 1/2	CYR-1 1/2-S	CCYR-1 1/2-S	1.5	0.875	0.4375	0.9375	1 3/32
CYR-1 5/8	CYR-1 5/8-S	CCYR-1 5/8-S	1.625	0.875	0.4375	0.9375	1 3/32
CYR-1 3/4	CYR-1 3/4-S	CCYR-1 3/4-S	1.75	1	0.5	1.0625	1 1/4
CYR-1 7/8	CYR-1 7/8-S	CCYR-1 7/8-S	1.875	1	0.5	1.0625	1 1/4
CYR-2	CYR-2-S	CCYR-2-S	2	1.25	0.625	1.3125	1 13/32
CYR-2 1/4	CYR-2 1/4-S	CCYR-2 1/4-S	2.25	1.25	0.625	1.3125	1 13/32
CYR-2 1/2	CYR-2 1/2-S	CCYR-2 1/2-S	2.5	1.5	0.75	1.5625	1 11/16
CYR-2 3/4	CYR-2 3/4-S	CCYR-2 3/4-S	2.75	1.5	0.75	1.5625	1 11/16
CYR-3	CYR-3-S	CCYR-3-S	3	1.75	1	1.8125	2 1/8
CYR-3 1/4	CYR-3 1/4-S	CCYR-3 1/4-S	3.25	1.75	1	1.8125	2 1/8
CYR-3 1/2	CYR-3 1/2-S	CCYR-3 1/2-S	3.5	2	1.125	2.0625	2 7/16
CYR-4	CYR-4-S	CCYR-4-S	4	2.25	1.25	2.3125	2 51/64
	CYR-5-S	CCYR-5-S	5	2.75	1.75	2.875	3 9/16
	CYR-6-S	CCYR-6-S	6	3.25	2.25	3.375	4 15/32
	CYR-7-S	CCYR-7-S	7	3.75	2.75	3.875	5 3/16
	CYR-8-S	CCYR-8-S	8	4.25	3.255	4.5	4 3/8
	CYR-9-S	CCYR-9-S	9	4.75	3.755	5	5 1/16
	CYR-10-S	CCYR-10-S	10	5.25	4.255	5.5	5 15/32
