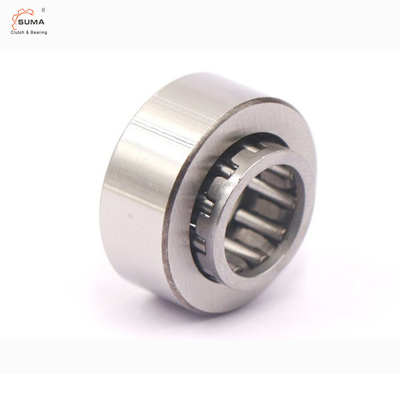

RSTO10 RSTO12 Yoke Type Track Rollers sin raza interna
Características de Yoke Type Track Rollers
Rodillos de ayuda, sin anillos del reborde, sin un anillo interno.
El tipo del rodillo de ayuda RSTO no tiene un anillo interno, y el rodillo de ayuda puede correr directamente en el eje endurecido como la alcantarilla.
El tipo de STO tiene un anillo interno, y los anillos internos y externos y sus montajes a juego de la jaula del rodillo de la aguja se pueden instalar por separado.
Desde el tipo rodillos de RSTO y de STO de ayuda no tenga costillas y anillos de retención de la cara del extremo, deben ser dirigidos axialmente durante la instalación, y sus superficies rectoras deben ser por lo menos precisión trabajaron a máquina.
Dimensiones y capacidades de Yoke Type Track Rollers
Dimensiones | Masa | Designación | Grado de la carga básica | Cansancio | Max Radial Force | Limitación Velocidad |
|||||||
D | C | D1 | FW | E | r | C | C0 | PU | Franco | F0r | |||
milímetro | kilogramo | kN | kN | kN | r/min | ||||||||
16 | 7,8 | – | 7 | 10 | 0,3 | 0.008 | RSTO 5 TN | 2,51 | 2,5 | 0,27 | 3,55 | 5 | 8000 |
19 | 9,8 | – | 10 | 13 | 0,3 | 0.012 | RSTO 6 TN | 3,74 | 4,5 | 0,5 | 4,25 | 6,1 | 7000 |
11,8 | 16 | 10 | – | 0,3 | 0.018 | ARN 22/6.2RS | 4,02 | 3,65 | 0.425 | 2,55 | 3,6 | 7000 | |
24 | 9,8 | – | 12 | 15 | 0,3 | 0.021 | RSTO 8 TN | 4,13 | 5,4 | 0,6 | 7,5 | 10,8 | 7000 |
11,8 | 18 | 12 | – | 0,3 | 0.029 | ARN 22/8.2RS | 4,68 | 4,55 | 0,54 | 5,3 | 7,5 | 6700 | |
30 | 11,8 | – | 14 | 20 | 0,3 | 0.042 | RSTO 10 | 8,25 | 8,8 | 1,04 | 8,5 | 12,2 | 6000 |
13,8 | 20 | 14 | – | 0,6 | 0.052 | RNA2200.2RS | 6,6 | 7,5 | 0,88 | 12 | 17,3 | 6300 | |
32 | 11,8 | – | 16 | 22 | 0,3 | 0.049 | RSTO 12 | 8,8 | 9,8 | 1,18 | 8,3 | 12 | 5600 |
13,8 | 22 | 16 | – | 0,6 | 0.057 | RNA2201.2RS | 7,04 | 8,5 | 1 | 11,6 | 16,6 | 6000 | |
35 | 11,8 | – | 20 | 26 | 0,3 | 0,05 | RSTO 15 | 9,13 | 10,6 | 1,27 | 7,1 | 10 | 5000 |
13,8 | 26 | 20 | – | 0,6 | 0,06 | RNA2202.2RS | 7,48 | 9,3 | 1,12 | 9,5 | 13,7 | 5000 | |
40 | 15,8 | 28 | 22 | – | 1 | 0.094 | RNA2203.2RS | 9,52 | 13,2 | 1,6 | 15,3 | 22 | 4500 |
15,8 | – | 22 | 29 | 0,3 | 0.088 | RSTO 17 | 14,2 | 17,6 | 2,08 | 12 | 17,3 | 4500 | |
47 | 15,8 | – | 25 | 32 | 0,3 | 0,13 | RSTO 20 | 16,1 | 21,2 | 2,5 | 18,6 | 26,5 | 4000 |
17,8 | 33 | 25 | – | 1 | 0,15 | RNA2204.2RS | 16,1 | 18 | 2,16 | 17,6 | 25,5 | 4000 | |
52 | 15,8 | – | 30 | 37 | 0,3 | 0,15 | RSTO 25 | 16,5 | 22,8 | 2,7 | 18 | 26 | 3400 |
17,8 | 38 | 30 | – | 1 | 0,18 | RNA2205.2RS | 16,8 | 20 | 2,4 | 17,3 | 24,5 | 3400 | |
62 | 19,8 | 43 | 35 | – | 1 | 0,28 | RNA2206.2RS | 17,9 | 25,5 | 3,05 | 28,5 | 40,5 | 2800 |
19,8 | – | 38 | 46 | 0,6 | 0,26 | RSTO 30 | 22,9 | 34,5 | 4,25 | 23,6 | 33,5 | 2600 | |
72 | 19,8 | – | 42 | 50 | 0,6 | 0,38 | RSTO 35 | 24,6 | 39 | 4,8 | 36 | 51 | 2200 |
22,7 | 50 | 42 | – | 1,1 | 0,43 | RNA2207.2RS | 22,4 | 35,5 | 4,3 | 38 | 54 | 2200 | |
80 | 19,8 | – | 50 | 58 | 1 | 0,42 | RSTO 40 | 23,8 | 39 | 4,75 | 34,5 | 49 | 1900 |
22,7 | 57 | 48 | – | 1,1 | 0,53 | RNA2208.2RS | 27,5 | 40,5 | 5 | 35,5 | 51 | 1900 | |
85 | 19,8 | – | 55 | 63 | 1 | 0,45 | RSTO 45 | 25,1 | 43 | 5,3 | 34,5 | 50 | 1700 |
90 | 19,8 | – | 60 | 68 | 1 | 0,48 | RSTO 50 | 26 | 45,5 | 5,7 | 34,5 | 50 | 1600 |
PAQUETE de Yoke Type Track Rollers
