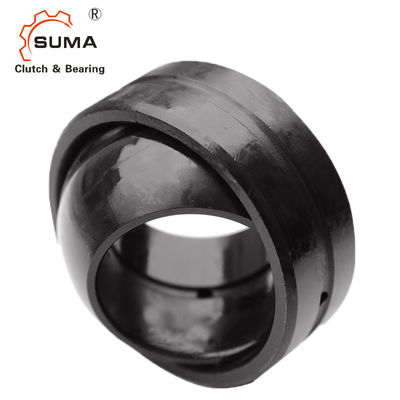

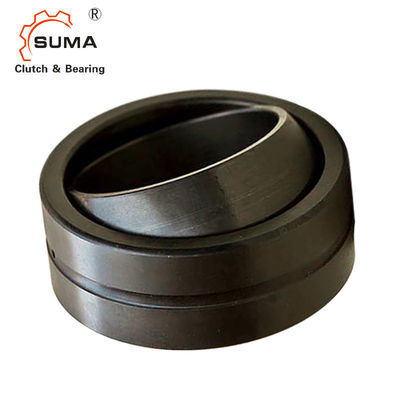

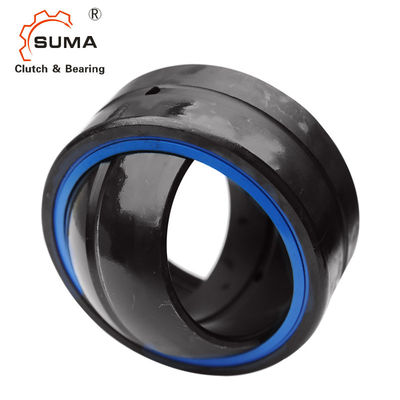

Acero de GE40DO GE40DO 2RS/transporte llano esférico radial de acero
Características
1, material: los anillos internos y externos son el llevar de acero (GCr15).
2, tratamiento térmico: se apagan los anillos internos y externos y el fosfatar.
3, estructura: Los anillos de cierre se atan en los ambos lados. Hay surco de aceite y agujero de aceite en el anillo interno y externo. El anillo externo tiene una ranura axial.
Dimensiones y capacidades
Tabla de la dimensión · Dimensiones en el milímetro | ||||||||||
Eje diámetro.
d |
Designación |
Masa
kilogramo |
Dimensiones | |||||||
d | D | B | C | DK |
α Grados |
|||||
sin sellos | con los sellos | |||||||||
6 | GE 6 HACE1) | – | 0.004 | 6-0,008 | 14-0,008 | 6-0,12 | 4-0,24 | 102) | 13 | |
8 | GE 8 HACE1) | – | 0.007 | 8-0,008 | 16-0,008 | 8-0,12 | 5-0,24 | 132) | 15 | |
10 | GE 10 HACE 1) | – | 0.012 | 10-0,008 | 19-0,009 | 9-0,12 | 6-0,24 | 162) | 12 | |
12 | GE 12 HACE 1) | – | 0.017 | 12-0,008 | 22-0,009 | 10-0,12 | 7-0,24 | 182) | 11 | |
15 | GE 15 HACE | – | 0.027 | 15-0,008 | 26-0,009 | 12-0,12 | 9-0,24 | 222) | 8 | |
16 | GE 16 HACE 4) | – | 0.044 | 16-0,008 | 30-0,009 | 14-0,12 | 10-0,24 | 252) | 10 | |
17 | GE 17 HACE | GE 17 DO-2RS | 0.041 | 17-0,008 | 30-0,009 | 14-0,12 | 10-0,24 | 252) | 10 | |
20 | GE 20 HACE | GE 20 DO-2RS | 0.065 | 20-0,01 | 35-0,011 | 16-0,12 | 12-0,24 | 292) | 9 | |
25 | GE 25 HACE | GE 25 DO-2RS | 0,12 | 25-0,01 | 42-0,011 | 20-0,12 | 16-0,24 | 35,5 | 7 | |
30 | GE 30 HACE | GE 30 DO-2RS | 0,15 | 30-0,01 | 47-0,011 | 22-0,12 | 18-0,24 | 40,7 | 6 | |
35 | GE 35 HACE | GE 35 DO-2RS | 0,23 | 35-0,012 | 55-0,013 | 25-0,12 | 20-0,3 | 47 | 6 | |
40 | GE 40 HACE | GE 40 DO-2RS | 0,32 | 40-0,012 | 62-0,013 | 28-0,12 | 22-0,3 | 53 | 7 | |
45 | GE 45 HACE | GE 45 DO-2RS | 0,41 | 45-0,012 | 68-0,013 | 32-0,12 | 25-0,3 | 60 | 7 | |
50 | GE 50 HACE | GE 50 DO-2RS | 0,53 | 50-0,012 | 75-0,013 | 35-0,12 | 28-0,3 | 66 | 6 | |
60 | GE 60 HACE | GE 60 DO-2RS | 1 | 60-0,015 | 90-0,015 | 44-0,15 | 36-0,4 | 80 | 6 | |
70 | GE 70 HACE | GE 70 DO-2RS | 1,5 | 70-0,015 | 105-0,015 | 49-0,15 | 40-0,4 | 92 | 6 | |
80 | GE 80 HACE | GE 80 DO-2RS | 2,2 | 80-0,015 | 120-0,015 | 55-0,15 | 45-0,4 | 105 | 6 | |
90 | GE 90 HACE | GE 90 DO-2RS | 2,7 | 90-0,02 | 130-0,018 | 60-0,2 | 50-0,5 | 115 | 5 | |
100 | GE 100 HACE | GE 100 DO-2RS | 4,3 | 100-0,02 | 150-0,018 | 70-0,2 | 55-0,5 | 130 | 7 | |
110 | GE 110 HACE | GE 110 DO-2RS | 4,7 | 110-0,02 | 160-0,025 | 70-0,2 | 55-0,5 | 140 | 6 | |
120 | GE 120 HACE | GE 120 DO-2RS | 8 | 120-0,02 | 180-0,025 | 85-0,2 | 70-0,5 | 160 | 6 | |
140 | GE 140 HACE | GE 140 DO-2RS | 11 | 140-0,025 | 210-0,03 | 90-0,25 | 70-0,6 | 180 | 7 | |
160 | GE 160 HACE | GE 160 DO-2RS | 14 | 160-0,025 | 230-0,03 | 105-0,25 | 80-0,6 | 200 | 8 | |
180 | GE 180 HACE | GE 180 DO-2RS | 18,2 | 180-0,025 | 260-0,035 | 105-0,25 | 80-0,7 | 225 | 6 | |
200 | GE 200 HACE | GE 200 DO-2RS | 28,3 | 200-0,03 | 290-0,035 | 130-0,3 | 100-0,7 | 250 | 7 | |
220 | – | GE 220 DO-2RS | 35,4 | 220-0,03 | 320-0,04 | 135-0,3 | 100-0,8 | 275 | 8 | |
240 | – | GE 240 DO-2RS | 39,4 | 240-0,03 | 340-0,04 | 140-0,3 | 100-0,8 | 300 | 8 | |
260 | – | GE 260 DO-2RS | 51,1 | 260-0,035 | 370-0,04 | 150-0,35 | 110-0,8 | 325 | 7 | |
280 | – | GE 280 DO-2RS | 64,6 | 280-0,035 | 400-0,04 | 155-0,35 | 120-0,8 | 350 | 6 | |
300 | – | GE 300 DO-2RS | 77,3 | 300-0,035 | 430-0,045 | 165-0,35 | 120-0,9 | 375 | 7 | |
1) La ninguna instalación del relubrication. 2) Ningún surco de lubricación en superficie esférica del anillo interno. 3) También disponible en los grupos C2 y C3. 4) Precio y entrega a petición. |
