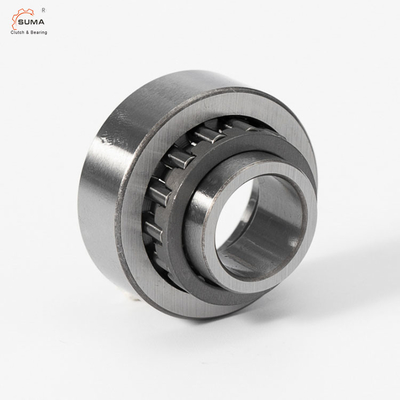

Transportes de aguja de los rodillos de ayuda de STO30 STO35 STO40 con el anillo interno
Características de los rodillos de ayuda de STO
Rodillos de ayuda de la serie de STO, sin anillos del reborde, con un anillo interno.
Rodillos de ayuda de la serie de RSTO, sin anillos del reborde, con un anillo interno.
El tipo de STO tiene un anillo interno, y los anillos internos y externos y sus montajes a juego de la jaula del rodillo de la aguja se pueden instalar por separado.
El tipo del rodillo de ayuda RSTO no tiene un anillo interno, y el rodillo de ayuda puede correr directamente en el eje endurecido como la alcantarilla.
Desde el tipo rodillos de RSTO y de STO de ayuda no tenga costillas y anillos de retención de la cara del extremo, deben ser dirigidos axialmente durante la instalación, y sus superficies rectoras deben ser por lo menos precisión trabajaron a máquina.
Dimensiones y capacidades de Yoke Type Track Rollers
Dimensiones | Masa | Designación | ||||||||||||||
D | d | C | B | D1 | F | E | r | r1,2 | C | C0 | PU | Franco | F0r | |||
milímetro | kilogramo | kN | kN | kN | r/min | |||||||||||
19 | 6 | 9,8 | 10 | – | 10 | 13 | 0,3 | 0,3 | 0.017 | STO 6 TN | 3,74 | 4,5 | 0,5 | 4,25 | 6,1 | 7000 |
6 | 11,8 | 12 | 16 | 10 | – | 0,3 | 0,3 | 0.022 | NA 22/6.2RS | 4,02 | 3,65 | 0.425 | 2,55 | 3,6 | 7000 | |
24 | 8 | 9,8 | 10 | – | 12 | 15 | 0,3 | 0,3 | 0.026 | STO 8 TN | 4,13 | 5,4 | 0,6 | 7,5 | 10,8 | 7000 |
8 | 11,8 | 12 | 18 | 12 | – | 0,3 | 0,3 | 0.034 | NA 22/8.2RS | 4,68 | 4,55 | 0,54 | 5,3 | 7,5 | 6700 | |
30 | 10 | 11,8 | 12 | – | 14 | 20 | 0,3 | 0,3 | 0.049 | STO 10 | 8,25 | 8,8 | 1,04 | 8,5 | 12,2 | 6000 |
10 | 13,8 | 14 | 20 | 14 | – | 0,6 | 0,3 | 0,06 | NA2200.2RS | 6,6 | 7,5 | 0,88 | 12 | 17,3 | 6300 | |
32 | 12 | 11,8 | 12 | – | 16 | 22 | 0,3 | 0,3 | 0.057 | STO 12 | 8,8 | 9,8 | 1,18 | 8,3 | 12 | 5600 |
12 | 13,8 | 14 | 22 | 16 | – | 0,6 | 0,3 | 0.067 | NA2201.2RS | 7,04 | 8,5 | 1 | 11,6 | 16,6 | 6000 | |
35 | 15 | 11,8 | 12 | – | 20 | 26 | 0,3 | 0,3 | 0.063 | STO 15 | 9,13 | 10,6 | 1,27 | 7,1 | 10 | 5000 |
15 | 13,8 | 14 | 26 | 20 | – | 0,6 | 0,3 | 0.075 | NA2202.2RS | 7,48 | 9,3 | 1,12 | 9,5 | 13,7 | 5000 | |
40 | 17 | 15,8 | 16 | – | 22 | 29 | 0,3 | 0,3 | 0,11 | STO 17 | 14,2 | 17,6 | 2,08 | 12 | 17,3 | 4500 |
17 | 15,8 | 16 | 28 | 22 | – | 1 | 0,3 | 0,11 | NA2203.2RS | 9,52 | 13,2 | 1,6 | 15,3 | 22 | 4500 | |
47 | 20 | 15,8 | 16 | – | 25 | 32 | 0,3 | 0,3 | 0,15 | STO 20 | 16,1 | 21,2 | 2,5 | 18,6 | 26,5 | 4000 |
20 | 17,8 | 18 | 33 | 25 | – | 1 | 0,3 | 0,18 | NA2204.2RS | 16,1 | 18 | 2,16 | 17,6 | 25,5 | 4000 | |
52 | 25 | 15,8 | 16 | – | 30 | 37 | 0,3 | 0,3 | 0,18 | STO 25 | 16,5 | 22,8 | 2,7 | 18 | 26 | 3400 |
25 | 17,8 | 18 | 38 | 30 | – | 1 | 0,3 | 0,21 | NA2205.2RS | 16,8 | 20 | 2,4 | 17,3 | 24,5 | 3400 | |
62 | 30 | 19,8 | 20 | – | 38 | 46 | 0,6 | 0,6 | 0,31 | STO 30 | 22,9 | 34,5 | 4,25 | 23,6 | 33,5 | 2800 |
30 | 19,8 | 20 | 43 | 35 | – | 1 | 0,3 | 0,32 | NA2206.2RS | 17,9 | 25,5 | 3,05 | 28,5 | 40,5 | 2600 | |
72 | 35 | 19,8 | 20 | – | 42 | 50 | 0,6 | 0,6 | 0,44 | STO 35 | 25,5 | 40,5 | 5 | 36 | 51 | 2200 |
35 | 22,7 | 23 | 50 | 42 | – | 1,1 | 0,6 | 0,51 | NA2207.2RS | 22,4 | 35,5 | 4,3 | 38 | 54 | 2200 | |
80 | 40 | 19,8 | 20 | – | 50 | 58 | 1 | 1 | 0,53 | STO 40 | 23,8 | 39 | 4,75 | 34,5 | 49 | 1900 |
40 | 22,7 | 23 | 57 | 48 | – | 1,1 | 0,6 | 0,63 | NA2208.2RS | 27,5 | 40,5 | 5 | 35,5 | 51 | 1900 | |
85 | 45 | 19,8 | 20 | – | 55 | 63 | 1 | 1 | 0,58 | STO 45 | 25,1 | 43 | 5,3 | 34,5 | 50 | 1700 |
90 | 50 | 19,8 | 20 | – | 60 | 68 | 1 | 1 | 0,62 | STO 50 | 26 | 45,5 | 5,7 | 34,5 | 50 | 1600 |
50 | 22,7 | 23 | 68 | – | – | 1,1 | 0,6 | 0,69 | NA2210.2RS | 28,1 | 43 | 5,3 | 34,5 | 50 | 1600 |
