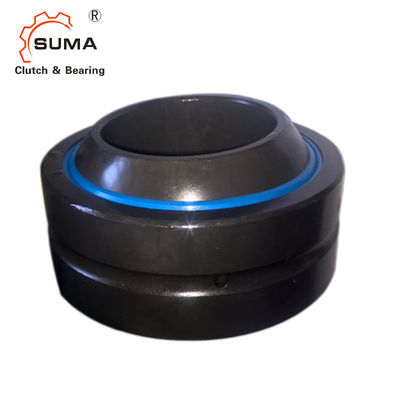

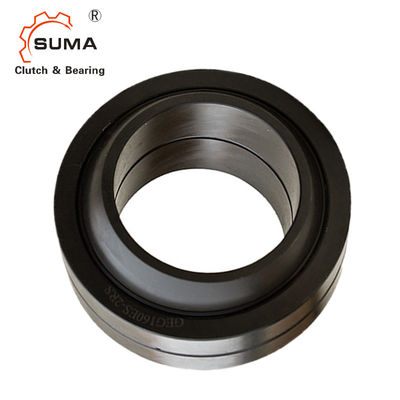

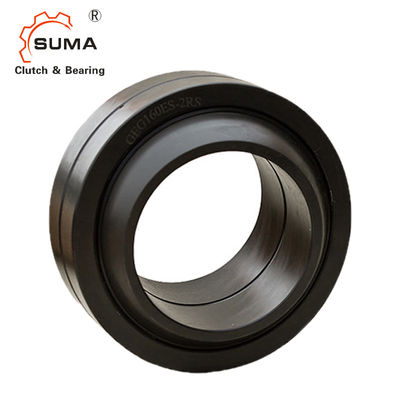

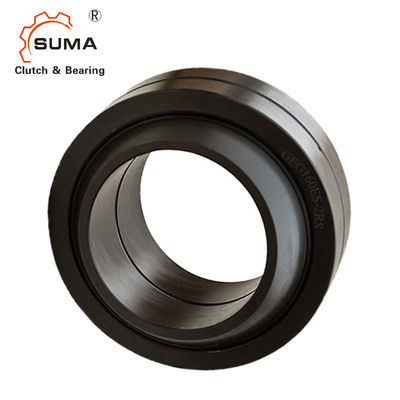

Llano esférico radial de GEG120ES
Características
GEG. E: Como serie GE. E, pero con un anillo interno más ancho y más grande fuera de diámetro, para llevar el arreglo donde está necesario un ángulo más grande de la inclinación, que es conveniente para un mecanismo más grande de las cargas.
GEG. .ES: Como la serie GE. .ES, pero un anillo interno más ancho y diámetro más grande, para llevar el arreglo donde un ángulo más grande si la inclinación es necesaria que es conveniente para un mecanismo más grande de las cargas.
GEG. .ES 2RS: Como la serie GE. .ES 2RS, pero un anillo interno más ancho y diámetro más grande, para llevar el arreglo donde un ángulo más grande si la inclinación es necesaria que es conveniente para un mecanismo más grande de las cargas, o un agujero en el extremo de barra. Tiene características de la capacidad de carga, fácil montaje y desmontaje y simplificación grandes del mecanismo.
Dimensiones y capacidades
Modelo Artículo |
Dimensiones | Grados de la carga (KN) | Peso (Kilogramo) |
|||||||||
d | D | B | C | DK | rs minuto |
r1s minuto |
α | Dinámico | Parásitos atmosféricos | |||
GEG4E | 4 | 14 | 7 | 4 | 10 | 0,3 | 0,3 | 20 | 3,4 | 17 | 0,005 | |
GEG5E | 5 | 16 | 9 | 5 | 13 | 0,3 | 0,3 | 21 | 5,5 | 27 | 0,008 | |
GEG6E | 6 | 16 | 9 | 5 | 13 | 0,3 | 0,3 | 21 | 5,5 | 27 | 0,006 | |
GEG8E | 8 | 19 | 11 | 6 | 16 | 0,3 | 0,3 | 21 | 8,1 | 40 | 0,014 | |
GEG10E | 10 | 22 | 12 | 7 | 18 | 0,3 | 0,3 | 18 | 10 | 53 | 0,021 | |
GEG12E | 12 | 26 | 15 | 9 | 22 | 0,3 | 0,3 | 18 | 16 | 84 | 0,033 | |
No hay surco de aceite o agujero de aceite en los tamaños antedichos. | ||||||||||||
GEG15ES | GEG15ES-2RS | 15 | 30 | 16 | 10 | 25 | 0,3 | 0,3 | 16 | 21 | 106 | 0,049 |
GEG17ES | GEG17ES-2RS | 17 | 35 | 20 | 12 | 29 | 0,3 | 0,3 | 19 | 30 | 146 | 0,083 |
GEG20ES | GEG20ES-2RS | 20 | 42 | 25 | 16 | 35,5 | 0,3 | 0,6 | 17 | 48 | 240 | 0,153 |
GEG25ES | GEG25ES-2RS | 25 | 47 | 28 | 18 | 40,7 | 0,6 | 0,6 | 17 | 62 | 310 | 0,203 |
GEG30ES | GEG30ES-2RS | 30 | 55 | 32 | 20 | 47 | 0,6 | 1 | 17 | 79 | 399 | 0,304 |
GEG35ES | GEG35ES-2RS | 35 | 62 | 35 | 22 | 53 | 0,6 | 1 | 16 | 99 | 495 | 0,408 |
GEG40ES | GEG40ES-2RS | 40 | 68 | 40 | 25 | 60 | 0,6 | 1 | 17 | 127 | 637 | 0,542 |
GEG45ES | GEG45ES-2RS | 45 | 75 | 43 | 28 | 66 | 0,6 | 1 | 15 | 156 | 780 | 0,713 |
GEG50ES | GEG50ES-2RS | 50 | 90 | 56 | 36 | 80 | 0,6 | 1 | 17 | 245 | 1220 | 1,14 |
GEG60ES | GEG60ES-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 313 | 1560 | 2,05 |
GEG70ES | GEG70ES-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 400 | 2000 | 3,01 |
GEG80ES | GEG80ES-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 488 | 2440 | 3,64 |
GEG90ES | GEG90ES-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 607 | 3030 | 5,22 |
GEG100ES | GEG100ES-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 654 | 3270 | 6,05 |
GEG110ES | GEG110ES-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 950 | 4750 | 9,68 |
GEG120ES | GEG120ES-2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 1070 | 5350 | 14,01 |
GEG140ES | GEG140ES-2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 1360 | 6800 | 19,01 |
GEG160ES | GEG160ES-2RS | 160 | 260 | 135 | 80 | 225 | 1,1 | 1,1 | 16 | 1530 | 7650 | 20,02 |
GEG180ES | GEG180ES-2RS | 180 | 290 | 155 | 100 | 250 | 1,1 | 2,1 | 14 | 2120 | 10600 | 32,21 |
GEG200ES | GEG200ES-2RS | 200 | 320 | 165 | 100 | 275 | 1,1 | 3,1 | 15 | 2320 | 11600 | 45,28 |
GEG220ES | GEG220ES-2RS | 220 | 340 | 175 | 100 | 300 | 1,1 | 4,1 | 16 | 2550 | 12700 | 51,12 |
GEG240ES | GEG240ES-2RS | 240 | 370 | 190 | 110 | 325 | 1,1 | 5,1 | 15 | 3030 | 15190 | 65,12 |
GEG260ES | GEG260ES-2RS | 260 | 400 | 205 | 120 | 350 | 1,1 | 6,1 | 15 | 3570 | 17850 | 82,44 |
GEG280ES | GEG280ES-2RS | 280 | 430 | 210 | 120 | 375 | 1,1 | 7,1 | 15 | 3800 | 19100 | 97,21 |
